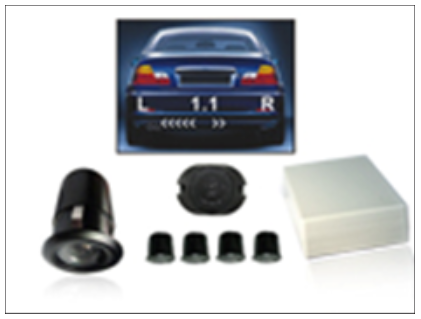

Model: AMVT-846

Video BSM system

The system has the more devices and the more functions. It consists of one video camera installing at the vehicle back in the middle, 3~5 (depends on your request, in left front, right front, left back, right back and middle back) distance sensors, one color LCD monitor (compatible with VCD/DVD), one controller, one speaker. It has real color scene display of the back and has the object distance display for around the vehicle. The distance figure can be in meter or in bar segment.

Typical Main Features:

• 4 rear sensor system with camera and LCD monitor
• High quality LCD monitor, clear vision

 Match original A / V monitor
• Low light camera with wide angle 115°

 Shock, vibration and water resistant camera
• Active audible / voice alert
• Perfect performance at night or in dark raining time
• Accurate digital distance and clear rearview shown on the LCD monitor
• PAL / NTSC modes available
• Volume adjustable
• Detachable sensor with waterproof wire connector
• All weather design

For typical parking assist system:

• Voltage: 12V ± 3V
• Static current: < 85mA
• Working current: < 630mA
• Beep volume: 70 ∼ 90dB
• Operating temperature:

     -40°C ∼ +85°C
• Detection range (rear):

      0.1 ∼ 2.59m
• Display range (rear):

      0.3 ∼ 2.5m

Sensor installation height:

      45 ∼ 60cm
• Detection range (front):

      0.1 ∼ 0.9m

  Display range (front):

      0.3 ∼ 0.9m

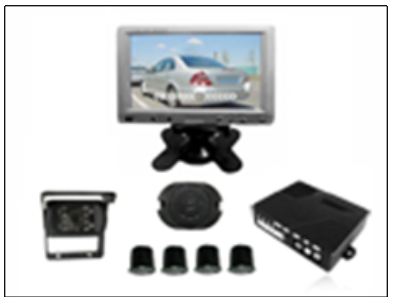

Model: AMVT-848

Typical specification

1. Colorful TFT For back view
2. VCD / DVD video signal connectable
3.Show the distance to the obstacle by the numeric display combined into the TFT monitor
4. Direction indicator (Left & Right)
5. Step-up display with 10 stages indicating distance To the obstacles
6. Three colors alarm
7. "DangDang" sound alarm
8. 3 / 4 sensors
9. All kinds of sensors optional
10. Stick-on & insert-in sensor optional
11. Display size:

      268 * 90* 45mm

For typical rearview camera:

• Type / mode: OSD camera
• Video standard:

       NTSC / PAL
• Voltage: DC 12V
• Power consumption:

       0.8W (Max.)
• Graphic sensor:

       1 / 3" color sensor
• View angel:

       122° x 95° x 74°

       145° x 115° x 82°
• Minimum illumination:

        < 2 Lux
• Operating temperature:      Camera

   (- 30°C ∼ + 80°C) 2.5m

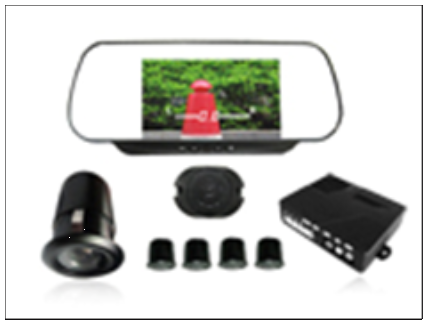

Model: AMVT-848

Typical package size:

G.W: 20kg     QTY:10pcs/CTN
Meas.:41.5 x 39.5 x 52cm
